特點(diǎn)與優(yōu)勢

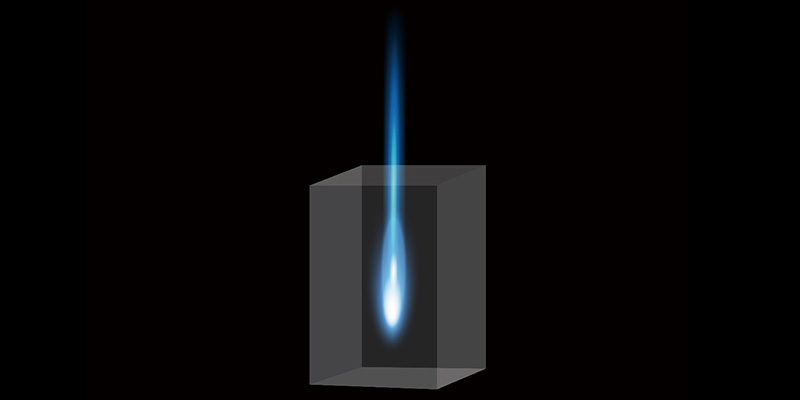

1.1 Superior Scintillator Material
ScintiStar detectors use a rare-earth-based ceramic material with a cubic garnet crystal structure, resulting in greater X-ray sensitivity, a 150-fold increase in visible light conversion rate over GOS, and reduced afterglow. It allows for more data to be acquired every rotation while generating less electronic noise, resulting in high-resolution images.

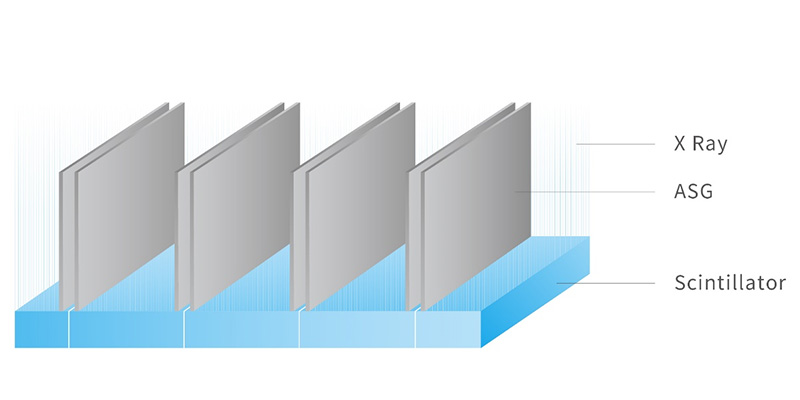

1.2 EAA (Eliminate Artifact Architecture) ASG
Due to its ability to effectively absorb the scattering X-ray, the anti-scattering grid (ASG) plays an important role in detector sampling. Unlike standard ASG designs, which use the same grid for neighboring modules, MinFound EAA ASG uses a separate grid between adjacent modules, considerably minimizing the possibility of grid expansion due to heat, and thus reducing the presence of artifacts in images.

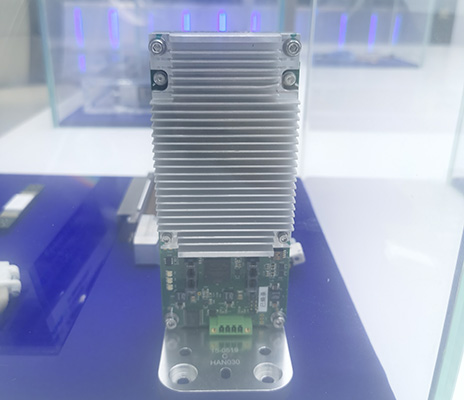

1.3 Highly Modularized & Integrated Design
The ScintiStar detector masterfully incorporates an ASG, a scintillator array, a photodiode, and an ASIC chip into a small module. This architecture improves the signal-to-noise ratio while also allowing for more modularized maintenance.
